3716 Springfield

Studio 804 is a non-profit design/build program associated with the University of Kansas. The group, consisting of graduate students, uses thorough research of sustainable building practices as well as cutting-edge technology and materials to produce environmentally friendly design.

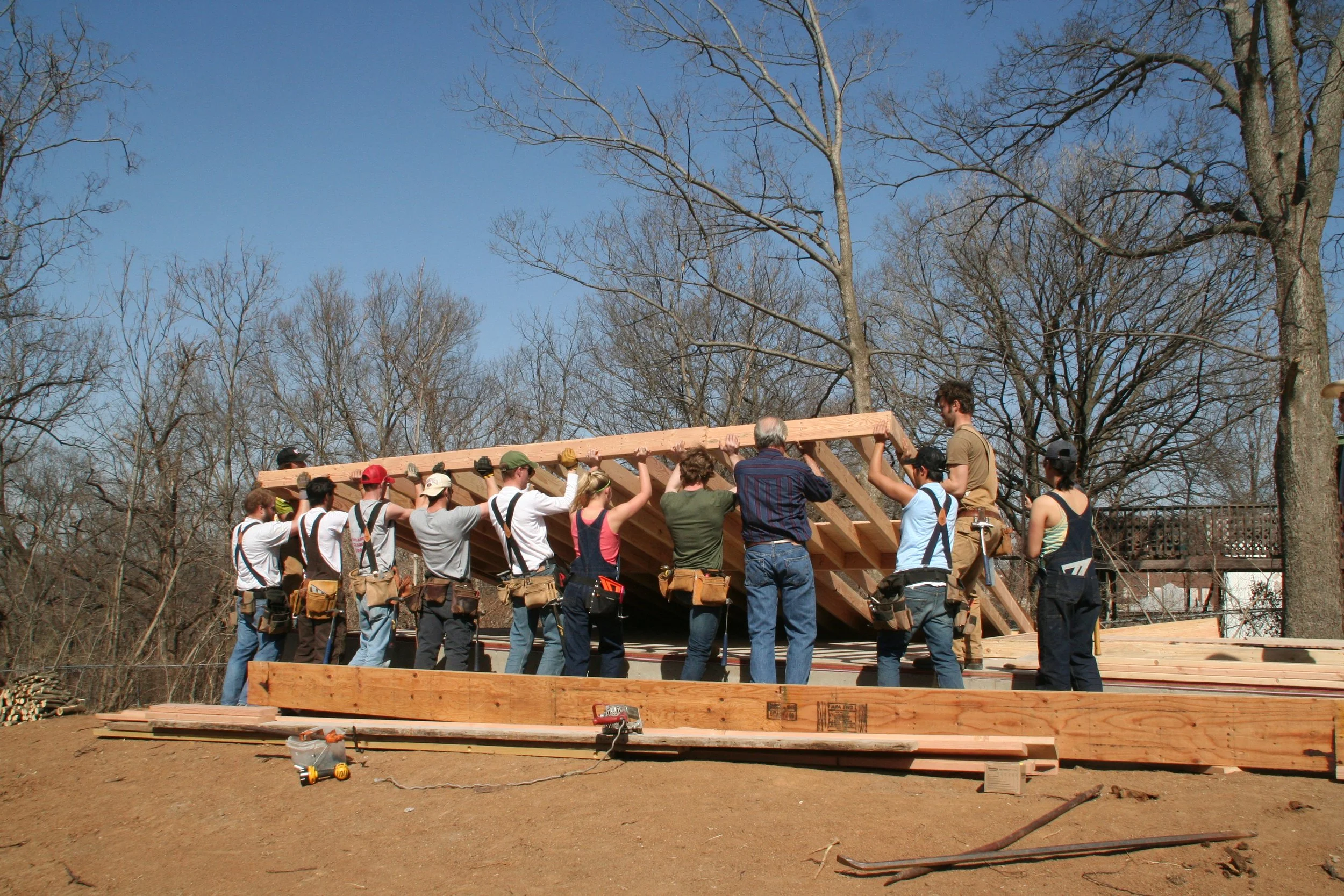

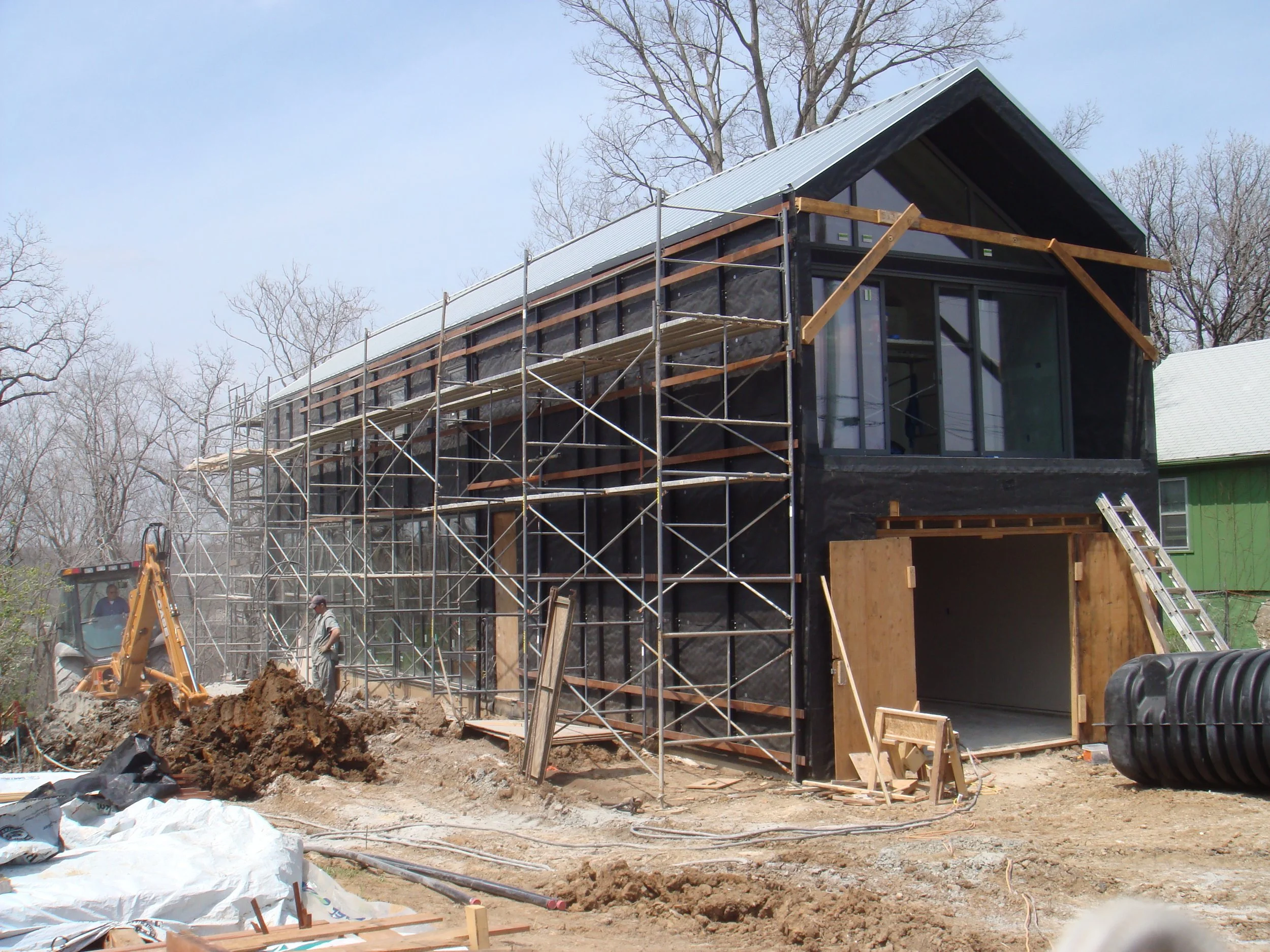

In the last six months of my graduate year, twenty-two of us designed and built 3716 Springfield, an off-the-grid, sustainable 2,500-square-foot home. It was the first LEED Platinum residence constructed in the state of Kansas, a rating achieved through both passive and active technologies, including solar panels, a wind turbine, a geothermal heat pump, cross ventilation, a high-performance glazing system, concrete thermal mass and radiant heating, and rainwater harvesting.

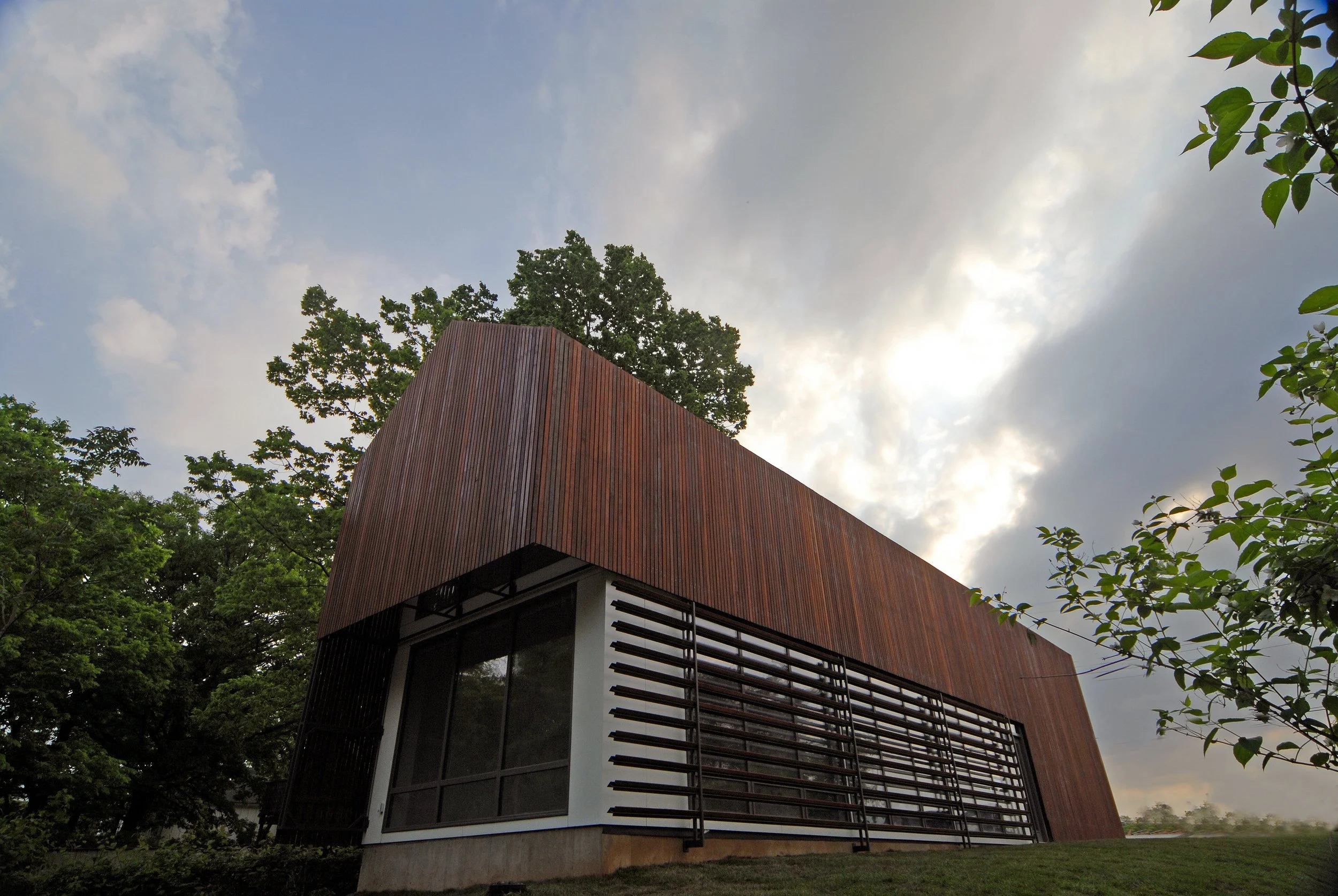

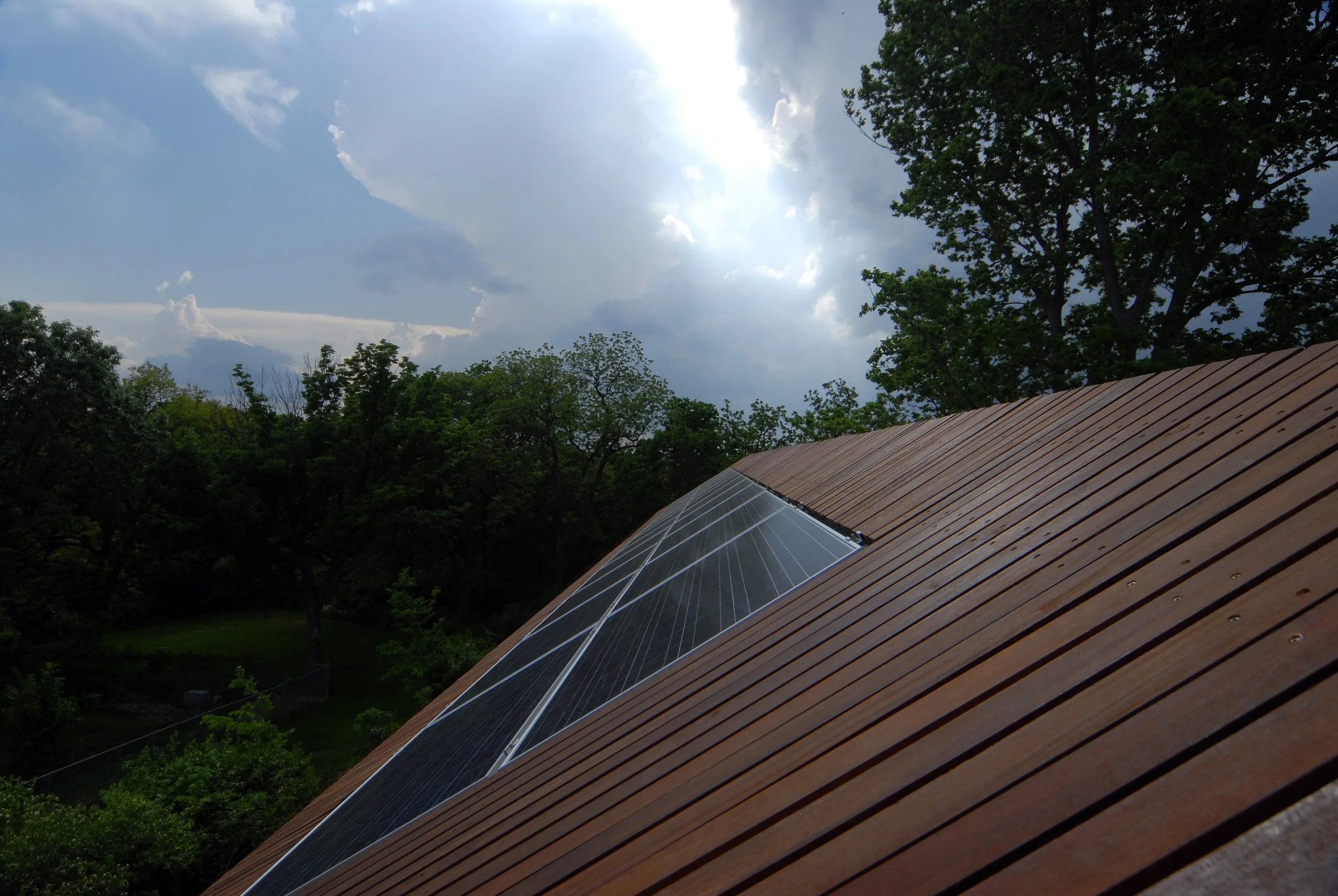

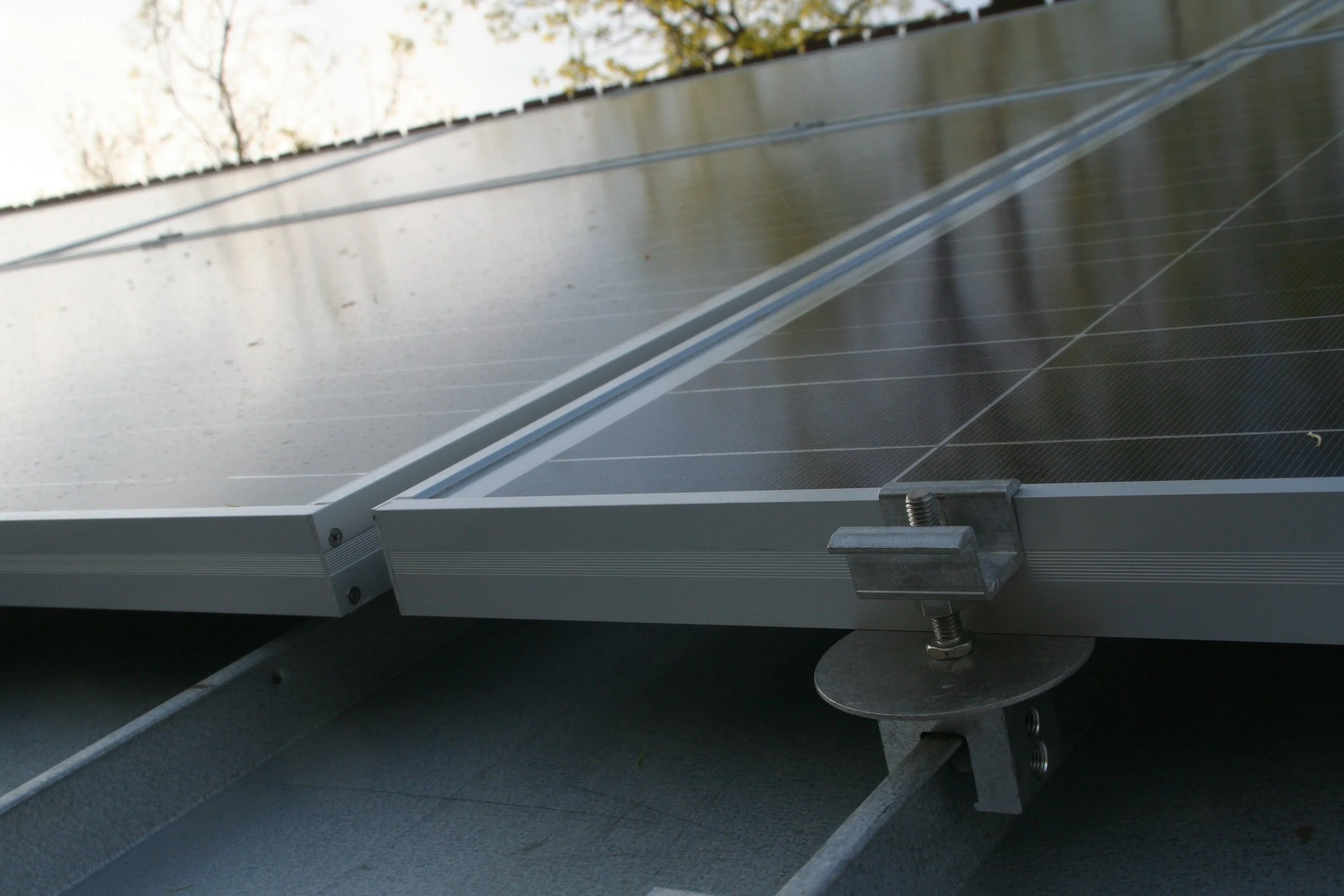

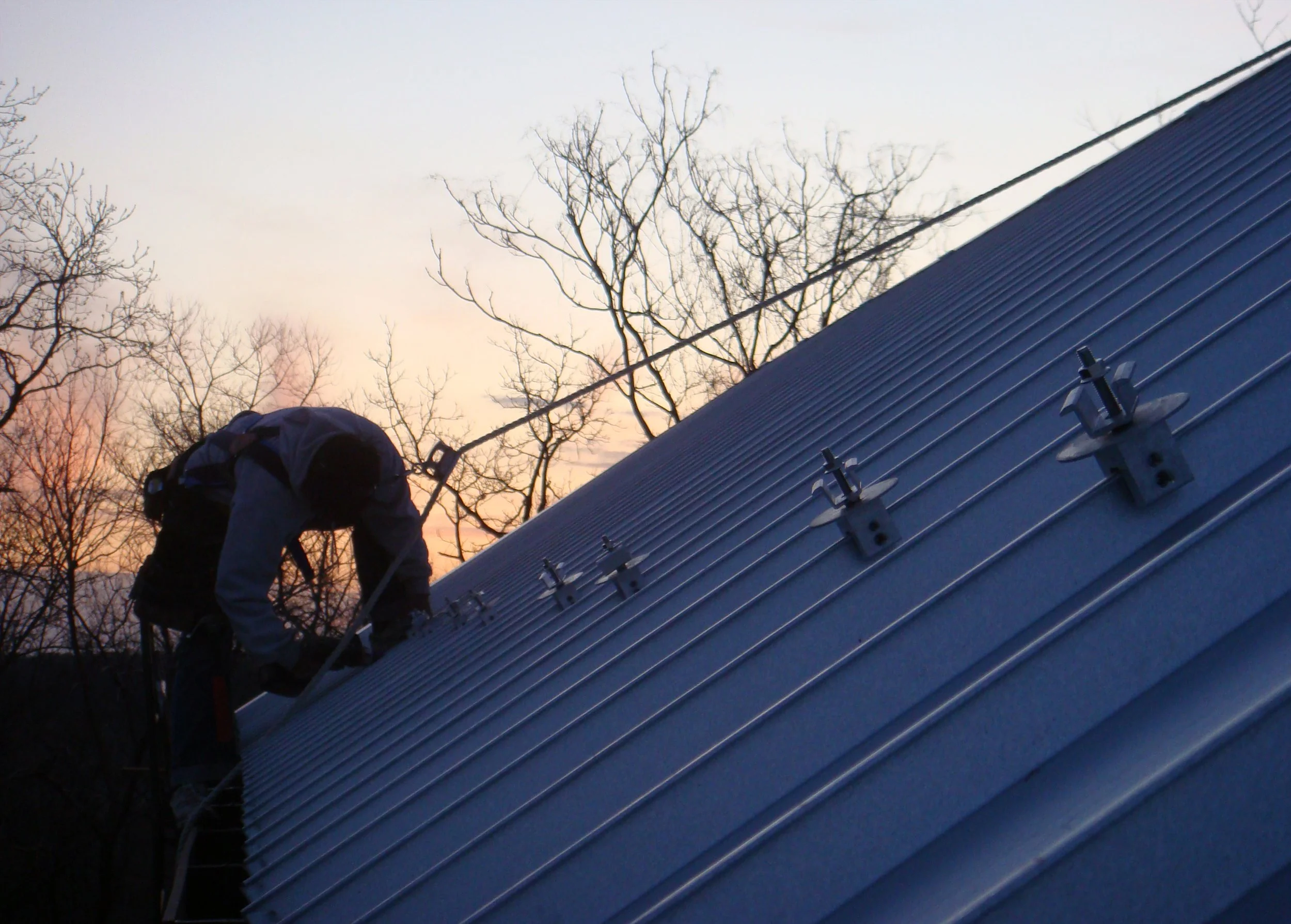

While everyone lent a hand at every stage of design and construction, each person was responsible for one thing, and I was accountable for the roof. Exhaustive research into roofing systems led to the choice of a standing-seam metal roof, which was especially helpful for rainwater collection. Below the metal is a self-adhering underlayment that allows the metal to expand and contract without damage. Above it is an extensive system of S-5 clips holding the PV panels, as well as horizontal battens that carry the FSC-certified Cumaru rainscreen. Three skylights on the north side of the roof aid air circulation and daylighting. All materials were tested for long-term compatibility, and industry professionals were consulted on proper installation. Afterward, each metal panel, skylight, and piece of wood was installed by hand.

location Kansas City, Kansas

type   New Construction (Design/Build)

services   Schematic Design | Design Development | Permitting | Construction Documentation | Construction

images    Studio 804 | Al Lampier
